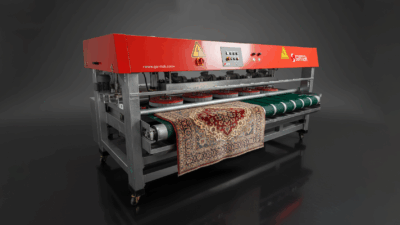

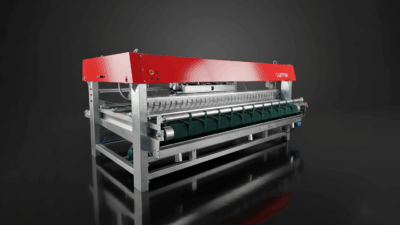

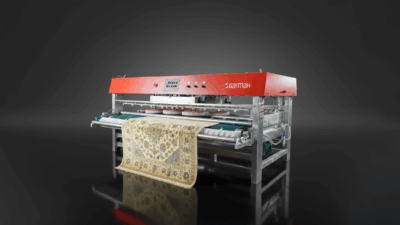

Mega Automatic Carpet Washing Machine
Gar-Mak Mega Automatic Carpet Washing Machine is an economical yet high-capacity solution designed for professional carpet cleaning facilities. With 4, 8, or 10 disc brush configurations, a dual (upper-lower) roller brush system, sensor based automation, and optional high-pressure pre-washing, it delivers deep hygiene with low operating costs.
Offering belt widths of 250-320 cm and a washing capacity ranging from 500 m² to 1650 m² per 8-hour shift, the Mega series is a durable, efficient, and scalable machine for growing businesses.
Mega Automatic Carpet Washing Machine: An Economical, Powerful, and High-Capacity Solution
The Mega Series, engineered by Gar-Mak, is designed to accelerate daily operations, reduce costs, and ensure consistent cleaning quality for professional carpet washing facilities.
Unlike the Giga series, it does not include a moving pressure roller or full vacuum modules, yet it delivers strong cleaning performance with its disc brush system, upper - lower roller brushes, and sensor based automation.
Smart and Safe Control System
- Fully automatic control structure equipped with advanced sensors
- PLC touchscreen panel enabling central control of all operations
- Error diagnostic panel identifies potential issues instantly, minimizing downtime
- This automation architecture reduces human error and guarantees consistent cleaning quality.
Superior Cleaning Performance
- Upper and lower roller brush system reaches deep into carpet fibers
- Optional additional disc brushes for high-traffic facilities
- Dual rinsing units ensure residue free hygiene
- Vacuum system reduces dirty detergent water, delivering cleaner results with lower water consumption
Efficiency and User-Friendly Design
- Automatic roll-up system reduces labor and speeds up workflow
- Pneumatic pressure system ensures easy operation and superior cleaning performance
- Automatic dosing pump optimizes detergent usage and reduces chemical waste
- Adjustable belt speed provides flexibility for different carpet types
Durability and Operational Safety
- Reinforced safety structure ensures operator-friendly use
- Galvanized or stainless-steel chassis options for long-term corrosion resistance
- Advanced filtration and pump system maintain constant clean-water flow for uninterrupted performance
Capacity and Configuration Options
Mega series offers three primary configurations to match the operational scale of your business:
- XE2025F4R (4 Discs): 500-600 m² / 8 hours
- XE2025F8R (8 Discs): 1000 m² / 8 hours
- XE2032F5R (10 Discs): 1650 m² / 8 hours
With an energy consumption range of only 5.5 - 9.3 kW/hour, the Mega series provides outstanding cost efficiency.
Technical Requirements & Installation
- 380V / 50Hz three-phase electrical input
- 6-8 Bar compressed air requirement
- Minimum 120 cm working space in the front and 150 cm at the rear
- Installation outdoors is not recommended due to rain and wind sensitivity
The Mega series is ideal both for new businesses and existing facilities looking to scale up.
MEGA AUTOMATIC CARPET WASHING MACHINE
| Specification | XE2025F4R | XE2025F8R | XE2032F5R |
|---|---|---|---|
| Series | Professional | Professional | Professional |
| Belt Width (cm) | 250 | 250 | 320 |
| Brush Configuration | 1 Bridge (4 Discs) | 2 Bridges (4+4 = 8 Discs) | 2 Bridges (5+5 = 10 Discs) |
| Moving Roller / Vacuum | No | No | No |
| Washing Capacity (m² / 8 hours) | 500–600 m² / 8 hours | 1000 m² / 8 hours | 1650 m² / 8 hours |
| Energy Consumption (kW) | 5.5 kW/hour | 8.2 kW/hour | 9.3 kW/hour |
| Total Power (kW) | 10 kW/hour | 15 kW/hour | 17 kW/hour |
| Water Consumption (L/min) | 25 L/min | 48 L/min | 63 L/min |
| Dimensions (cm) W×D×H | 270 × 240 × 190 | 270 × 240 × 190 | 340 × 240 × 190 |
| Weight (kg) | 1080 kg | 1220 kg | 1400 kg |
MEGA SERIES OPTIONS
| Option | XE2025F4R | XE2025F8R | XE2032F5R |
|---|---|---|---|
| Automatic Dosing System | ✓ | ✓ | ✓ |
| High-Pressure Pre-Washing | ✓ | ✓ | ✓ |
| Extra Brush Set (Bottom Brush) | X | X | X |
| Advanced Filtration System | ✓ | ✓ | ✓ |
Note: All models operate with 380V / 50Hz three-phase electricity and require 6–8 Bar compressed air. 60Hz-compatible models can be manufactured upon customer request.
WHY SHOULD I BUY THIS MACHINE?
Why Choose the Mega Automatic Carpet Washing Machine?
1) Cost-efficient investment with fast ROI
Mega significantly reduces operational expenses with its low electricity and water consumption.
With a capacity of 500 m² to 1650 m² per shift, the machine pays for itself in a short time.
2) Professional cleaning with consistent results
Its upper - lower roller brush system and optional disc brush enhancements deliver deep cleaning on Shaggy, wool, woven, and heavily soiled carpets.
3) Smart automation eliminates operator dependency
PLC touchscreen control, sensors, and real-time error diagnostics ensure stable, repeatable results - regardless of operator skill level.
4) Lower operating costs and sustainable profitability
Automatic dosing, optimized water flow, and low energy demand reduce monthly operational expenses significantly.
5) Durable chassis for long-term industrial use
Galvanized or stainless-steel structure ensures long service life and reliability in demanding working environments.
6) Modular structure that grows with your business
With belt widths from 250 cm to 320 cm and brush options from 4 to 10 discs, Mega offers the ideal configuration for every operational scale.
