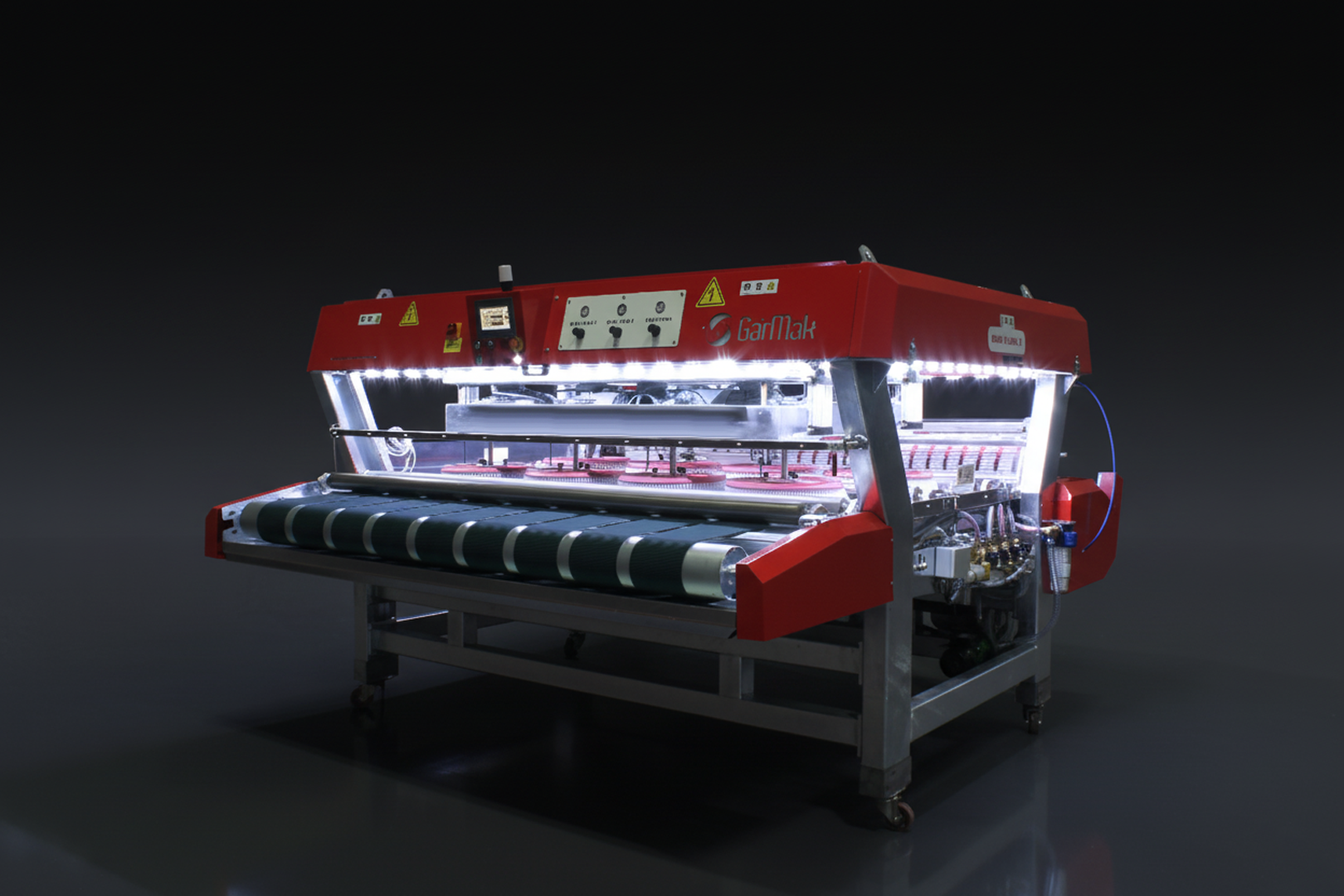

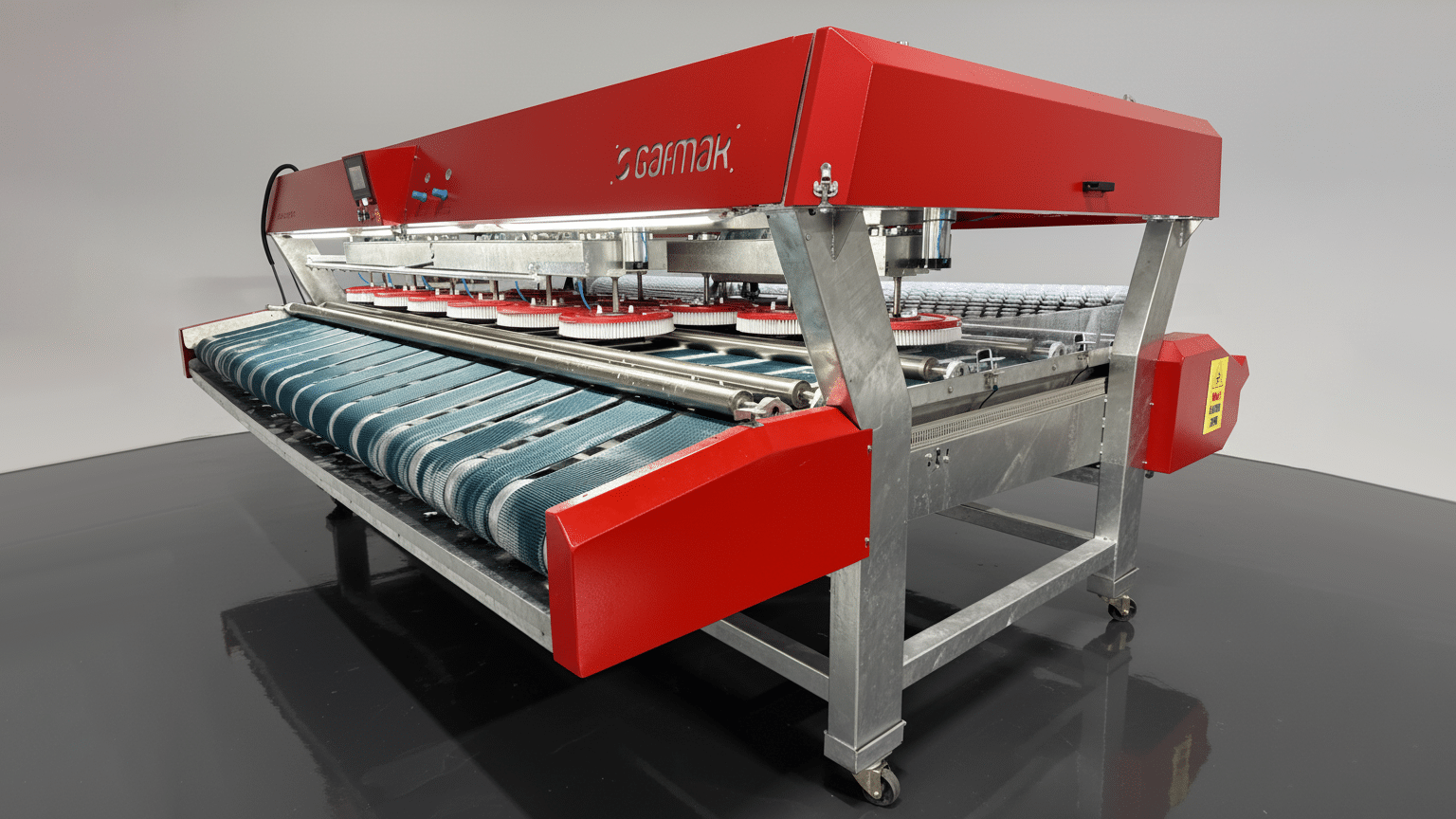

Giga Automatic Carpet Washing Machines

GIGA Series Fully Automatic Carpet Washing Machines are high-capacity, PLC-controlled conveyor-type washing systems developed for professional carpet cleaning plants. With belt widths from 250 to 420 cm, 8–18 disc brush configurations, upper–lower roller brush system, water-saving flat spray nozzle technology and advanced vacuum/roll-winding modules, they deliver maximum hygiene with minimum water and chemical consumption.

The Pro, Optima and Hybrid options offer solutions for different production volumes with high washing capacities ranging between 1000 and 1650 m² per 8-hour shift. With their galvanized chassis, automatic dosing, high-pressure pre-wash and advanced filtration systems, they provide a long-lasting, low-cost and fully automatic operation experience.

It is a high-end solution compatible with all search intents such as automatic carpet washing machine, industrial carpet washing machines, conveyor (belt-type) carpet washing machine, table-type carpet washing machine, 8, 12, 15,18-brush carpet washing machine.

13 People watching this product now!
Product Details

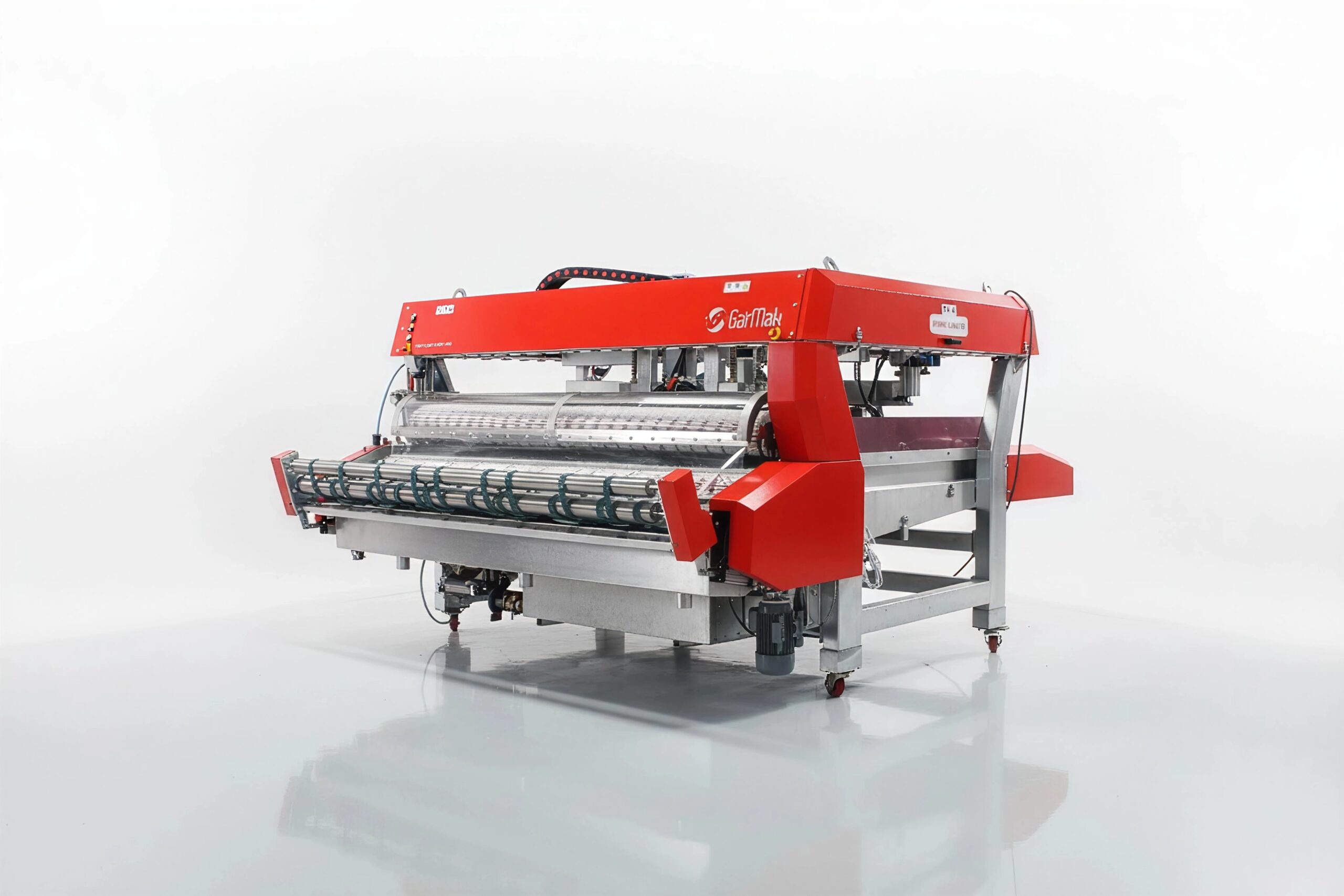

GIGA Series Fully Automatic Carpet Washing Machines


Smart automation, high capacity and superior hygiene performance redefining industrial standards

Developed with Gar-Mak’s engineering vision, the
Giga Pro, Giga Optima and Giga Hybrid
series combine belt-type (conveyor) carpet washing technology with PLC-based full automation, accelerating carpet washing processes, standardizing results and minimizing operator dependency.

Offering capacities between 1000 and 1650 m² per 8-hour shift, these machines are designed with configurable brush, belt and power options to suit different plant sizes.

1) TECHNOLOGICAL DIFFERENCES BY SERIES

The technical distinctions below help you position the right machine model within the Giga family.

GIGA PRO (2 Bridges – 8/10 Brushes)

Cost-optimized solution for high-capacity operations

  • Brush configuration: 4+4 = 8 Discs or 5+5 = 10 Discs
  • Available belt widths: 250, 320, 420 cm
  • Energy consumption: 9.9–11 kW/hour
  • Water consumption: 53–63 L/min
  • Capacity: 1000–1650 m² / 8-hour shift

    Advantage:
    High performance with lower energy consumption, powerful vacuum and a compact power package.

GIGA OPTIMA (3 Bridges – 12/15 Brushes)

Advanced cleaning for plants with heavy carpet traffic

  • Brush configuration: 4+4+4 = 12 Discs or 5+5+5 = 15 Discs
  • Belt width: 250, 320, 420 cm
  • Energy consumption: 13–15 kW/hour
  • Water consumption: 63–71 L/min
  • Capacity: 1000–1650 m² / 8-hour shift

    Advantage:
    Thanks to its three-bridge structure, it delivers maximum performance on long-pile, high-grammage carpets and deep-seated dirt.

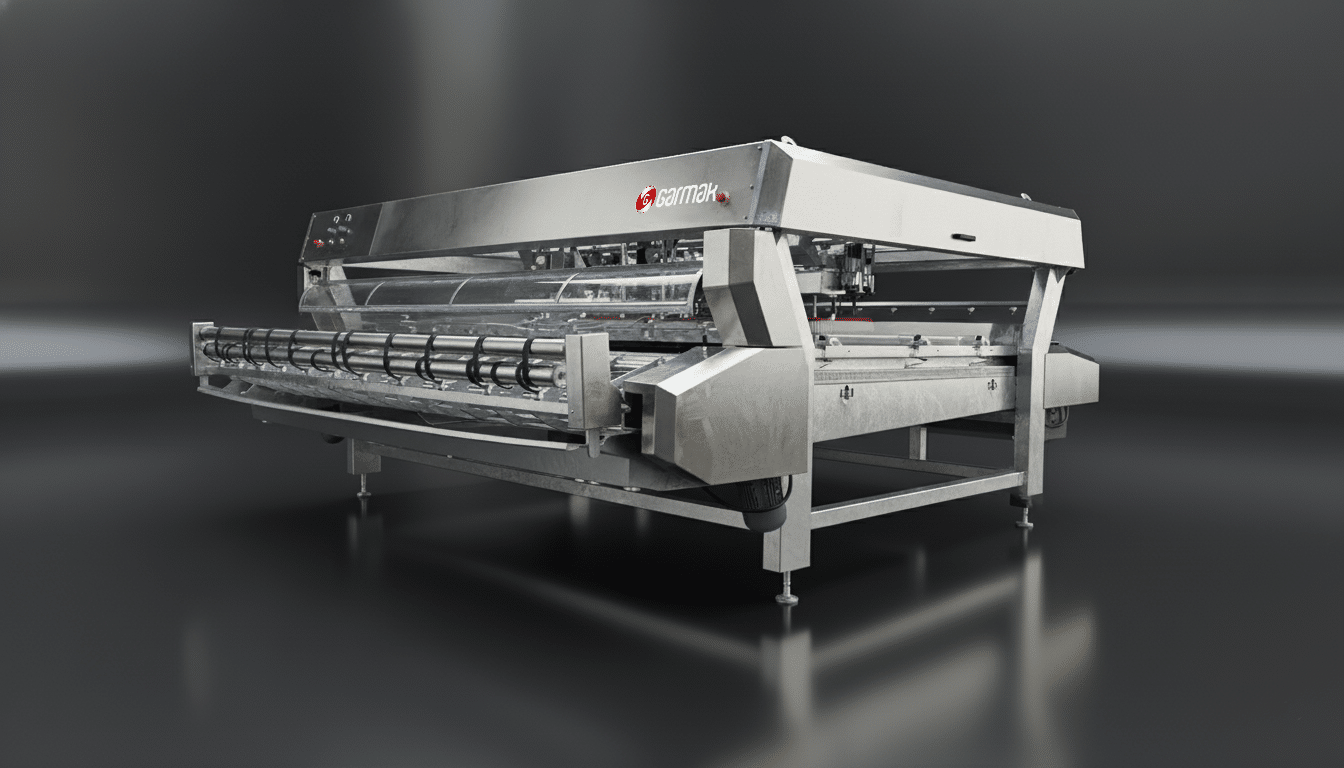

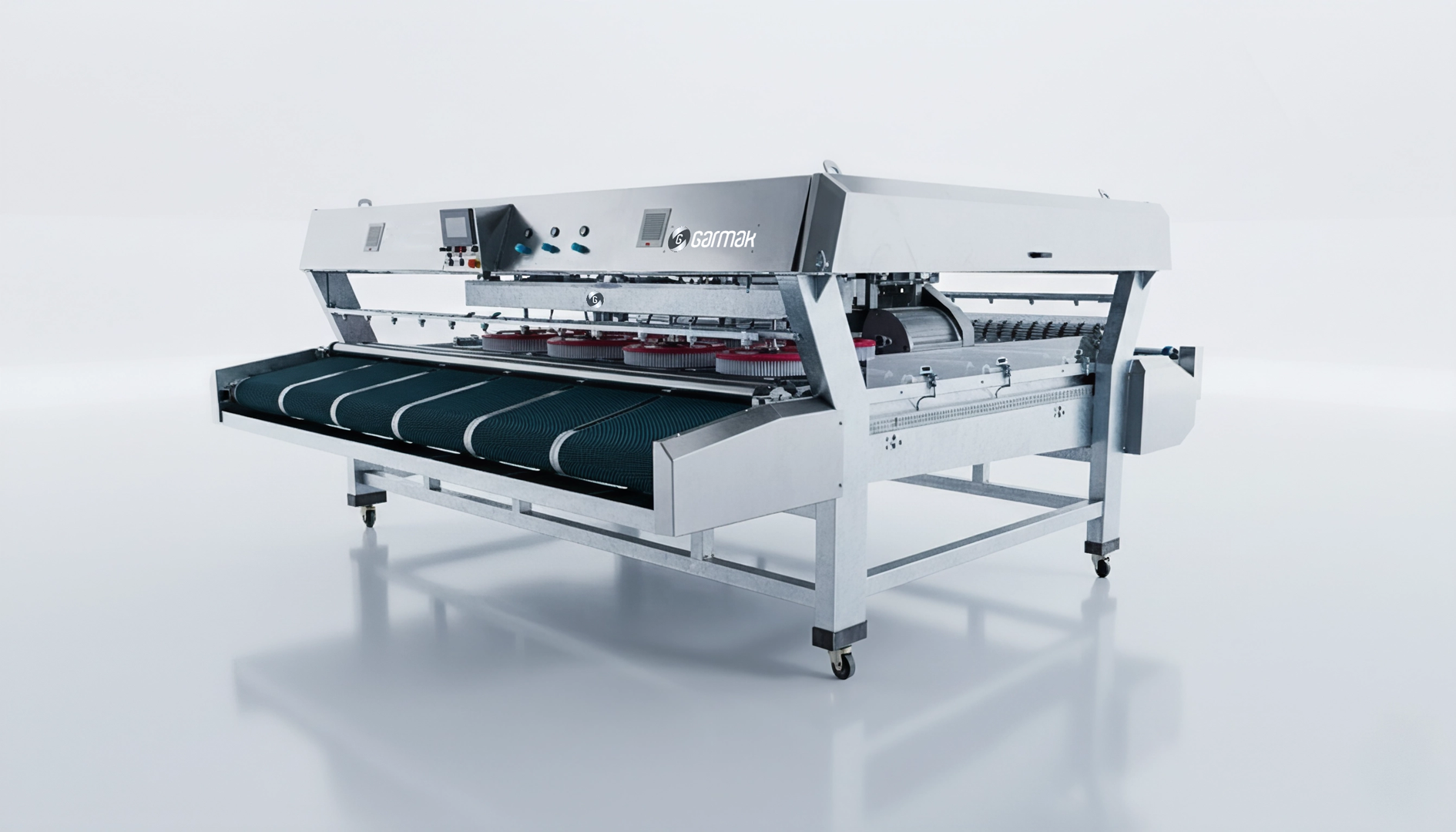

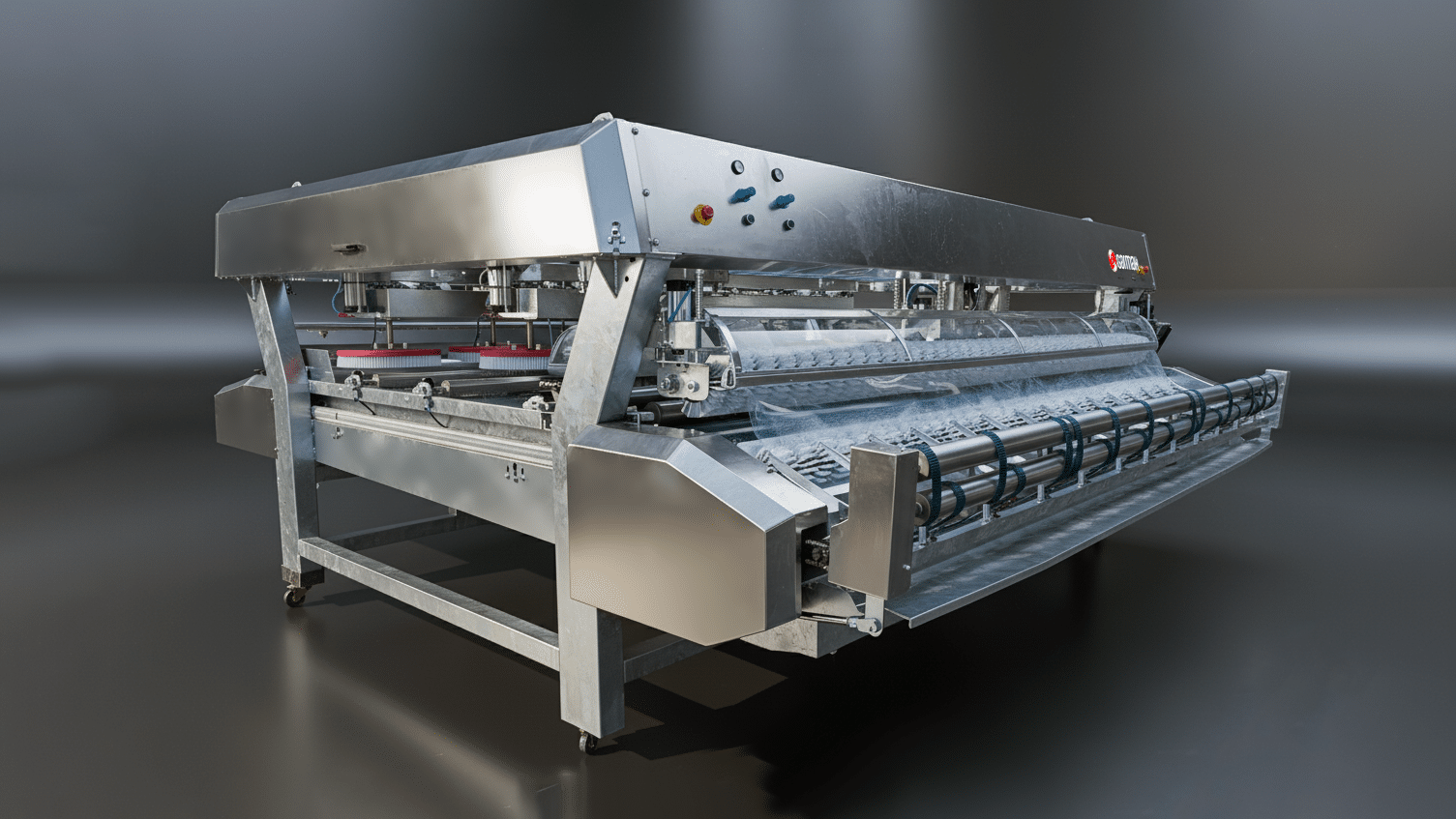

GIGA HYBRID (3 Bridges – High Power with Moving Roller System)

High-pressure hybrid configuration for the most challenging carpets

  • Brush configuration: 12/15 Discs
  • Moving roller system: The moving surface that contacts the carpet provides high mechanical pressure.
  • Energy consumption: 14–16 kW/hour
  • Water consumption: 67–75 L/min

    Advantage:
    A hybrid power package for plants that require both high speed and maximum brushing pressure.

2) COMMON ADVANTAGES ACROSS ALL SERIES

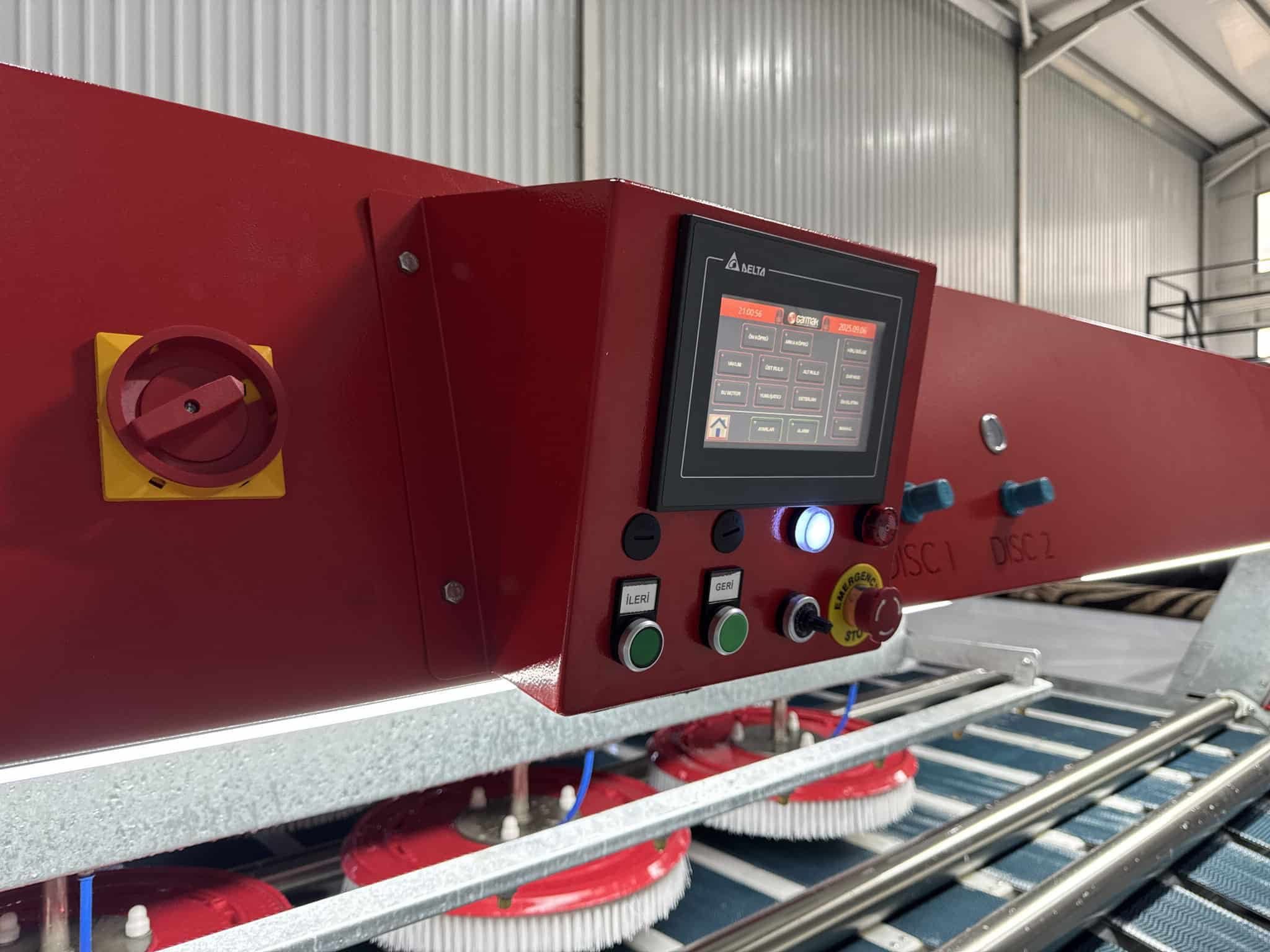

Smart PLC Management & Sensor-Based Automation

  • Carpet entry, pressure adjustment and brush activation are fully sensor-controlled.
  • Minimizes operator errors and ensures consistent quality at all times.
  • All stages are monitored in real time via the touch panel.

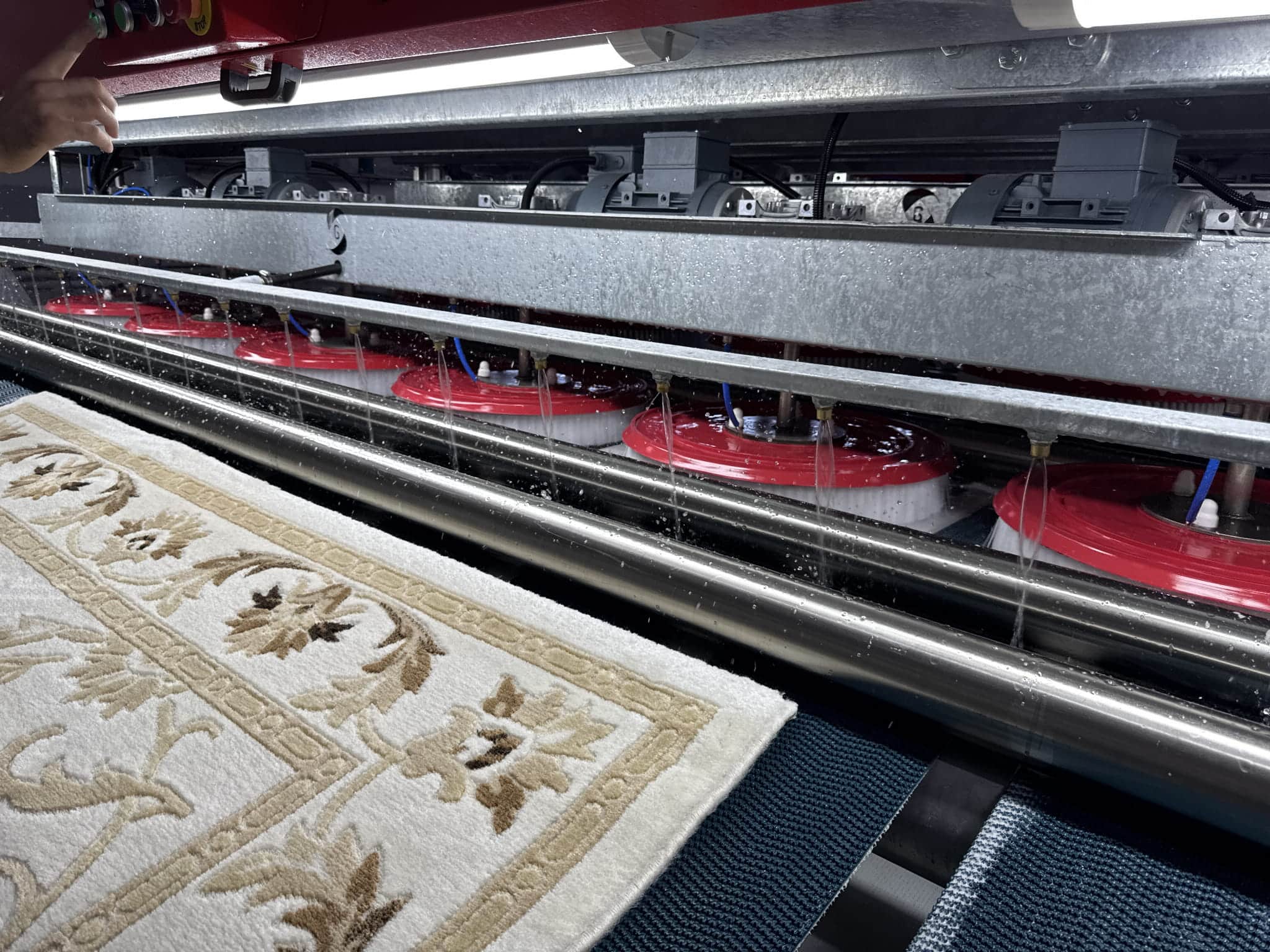

Superior Cleaning Performance

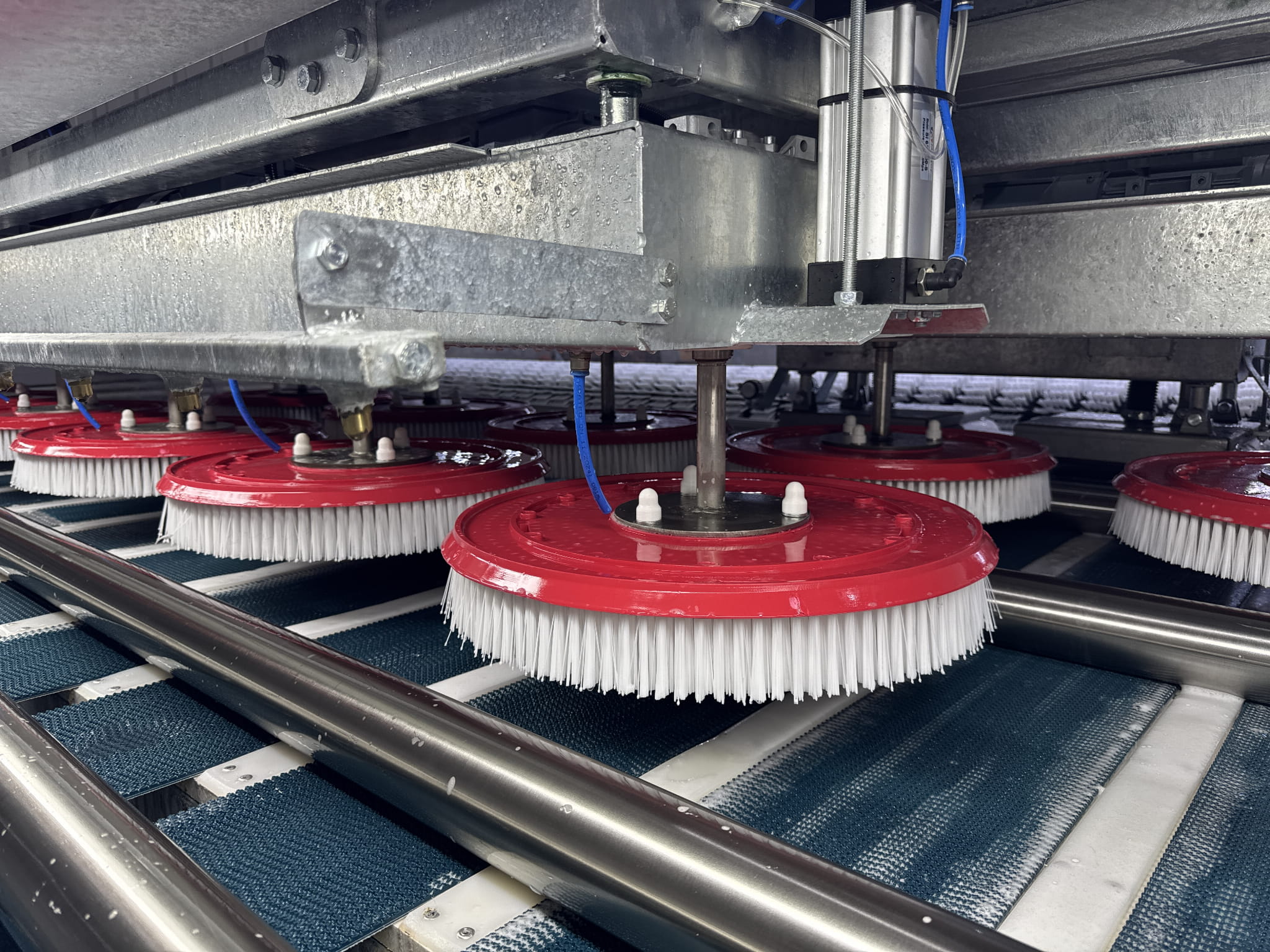

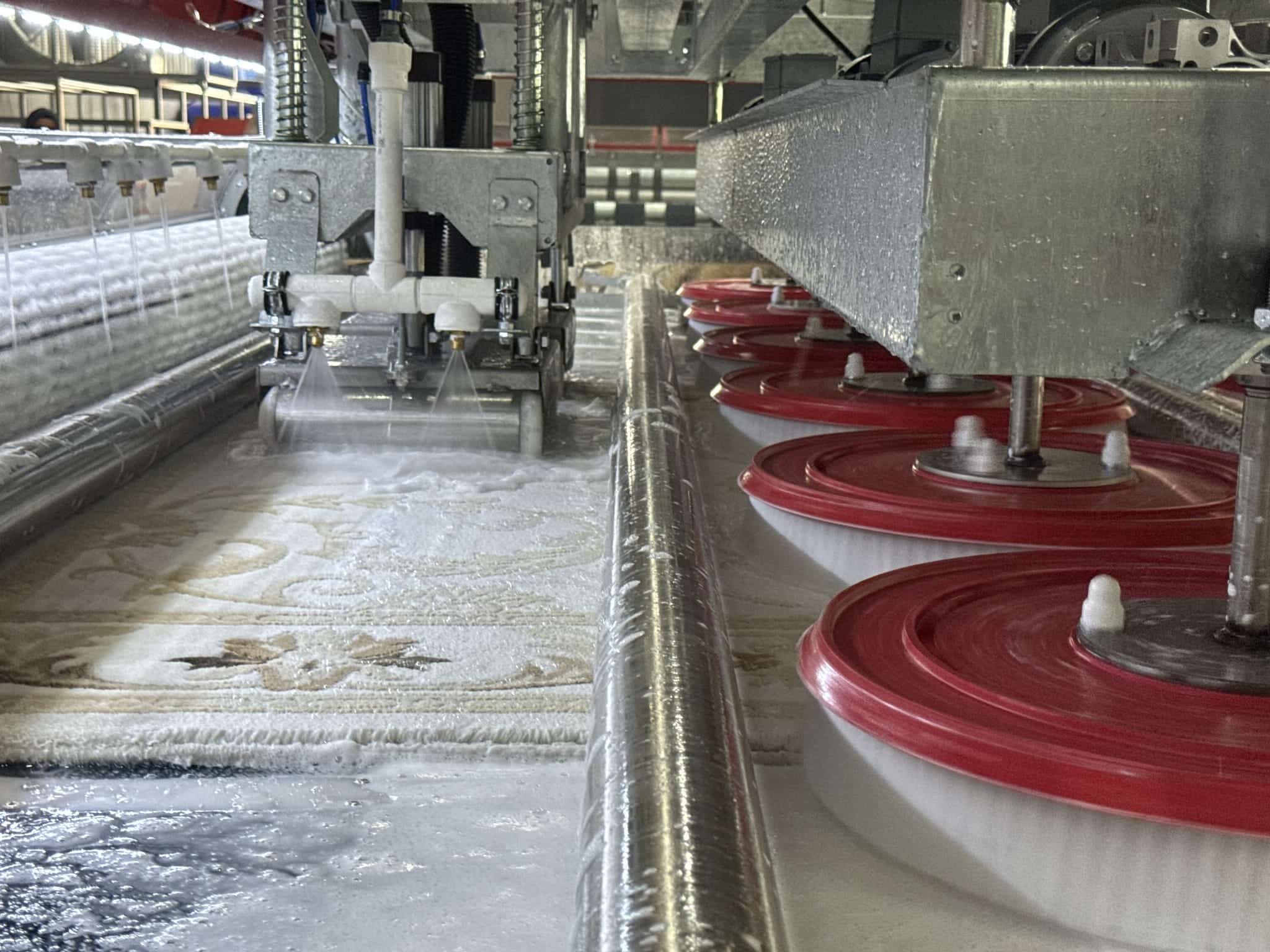

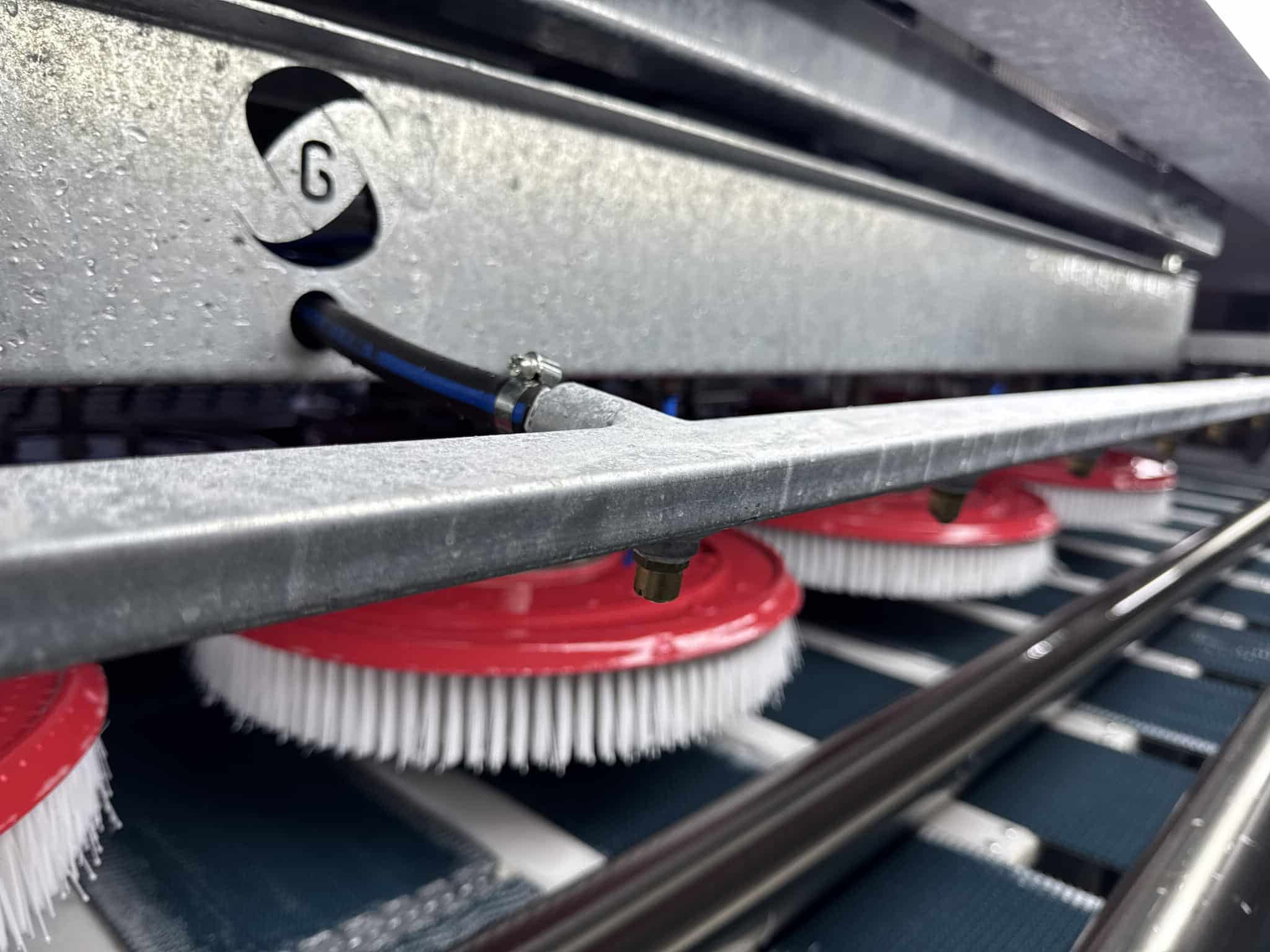

  • Upper–lower roller brushes and multi-stage disc brushes

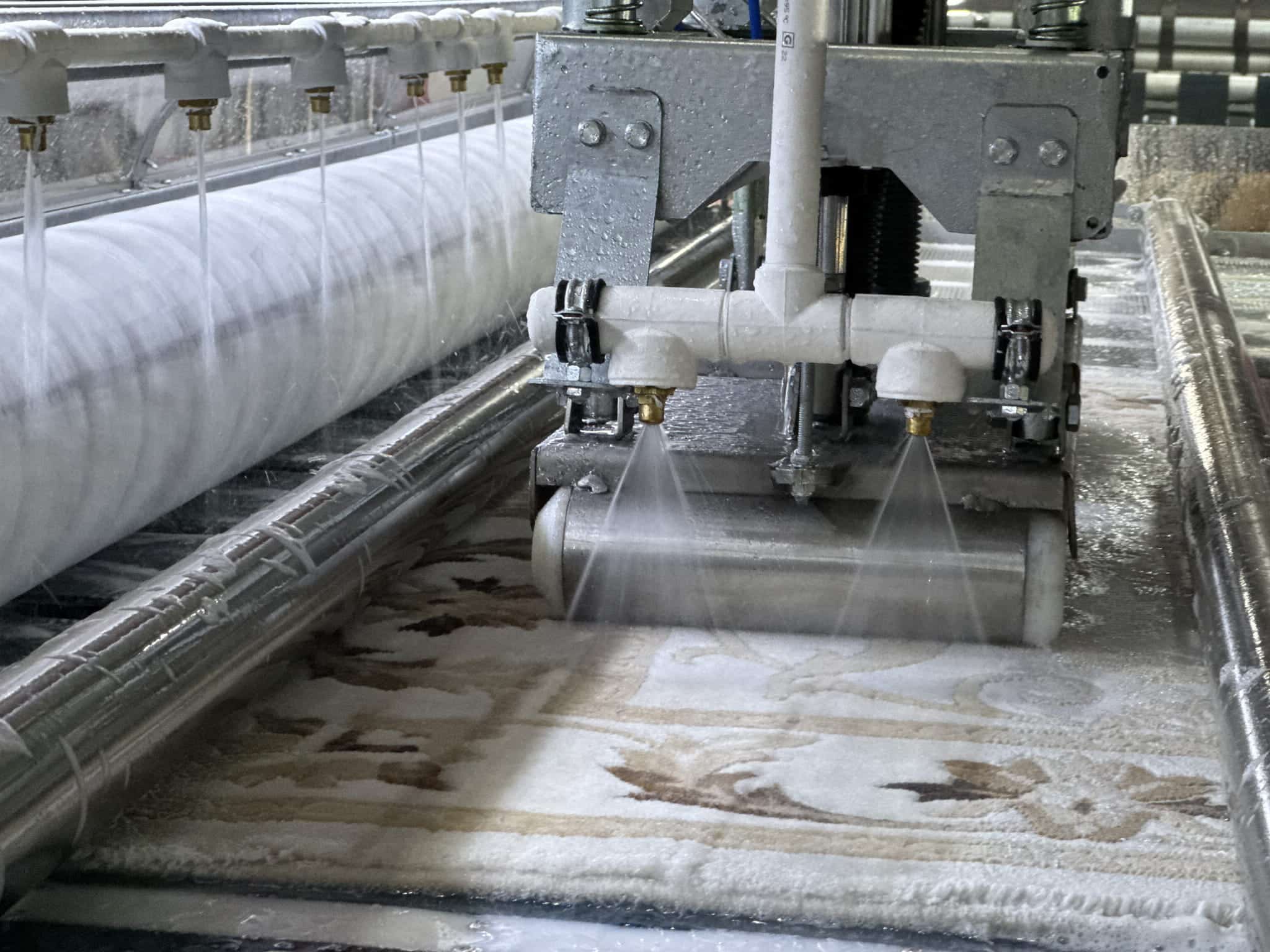

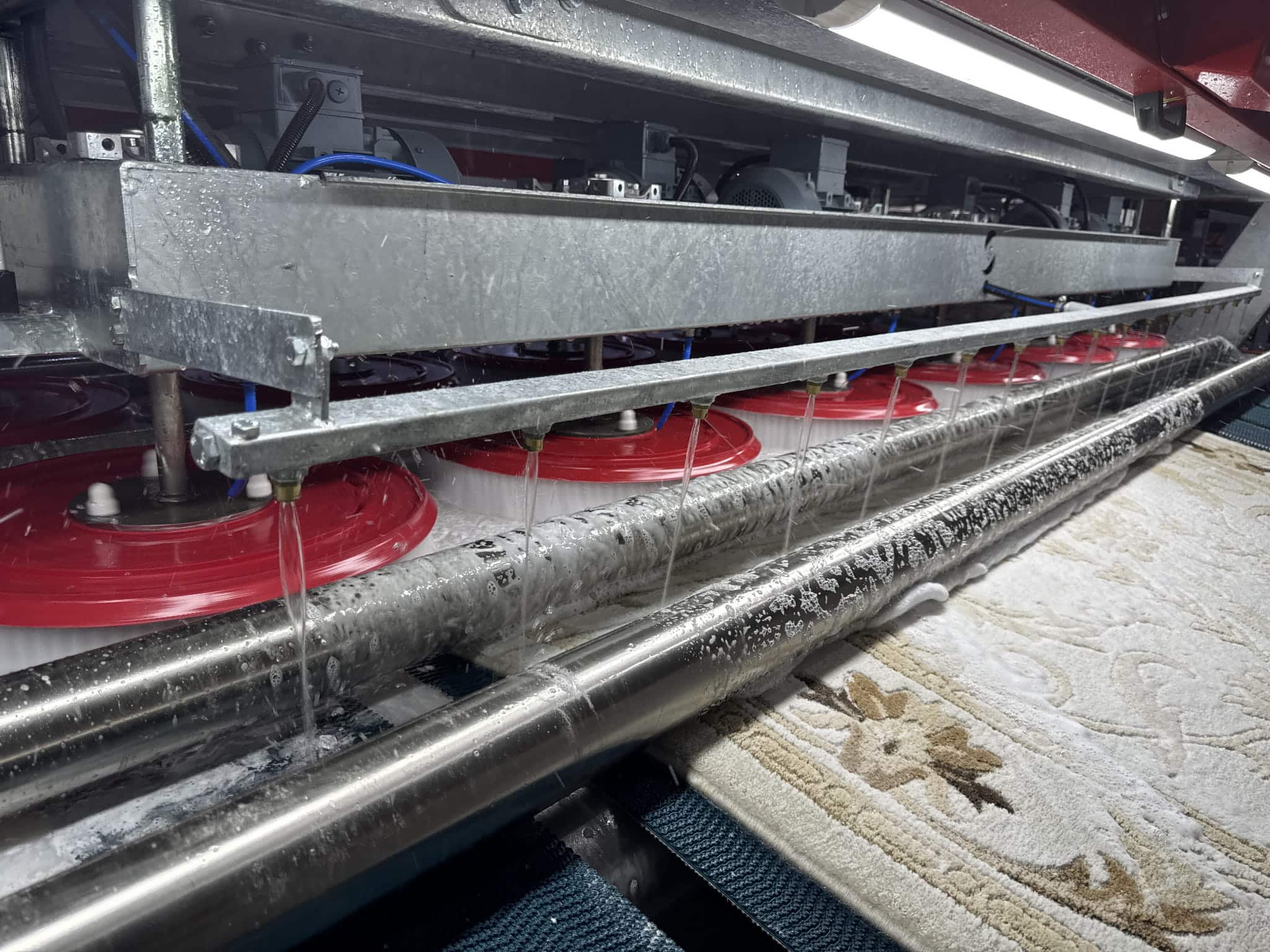

  • Flat spray nozzles providing water-saving, homogeneous spraying
  • Double-sided rinsing plus high-efficiency vacuum
  • Faster transfer to the spin dryer and shorter overall process times

Efficiency and Savings

  • Compared to conventional systems,
    up to 30% less water and chemical consumption
  • Ability to wash a 6 m² carpet in 3 minutes
  • Fully automatic line management with only 2 operators

Durability & Operational Safety

  • Heat-treated hot-dip galvanized body
  • Advanced filtration and powerful pump system
  • High-pressure pre-wash option
  • Combinations of moving roller and vacuum modules

3) Capacity Advantage by Belt Width

  • 250 cm: Optimal investment for medium-sized businesses
  • 320 cm: The most preferred width for high-traffic operations
  • 420 cm: Highest capacity – ideal for large-scale plants

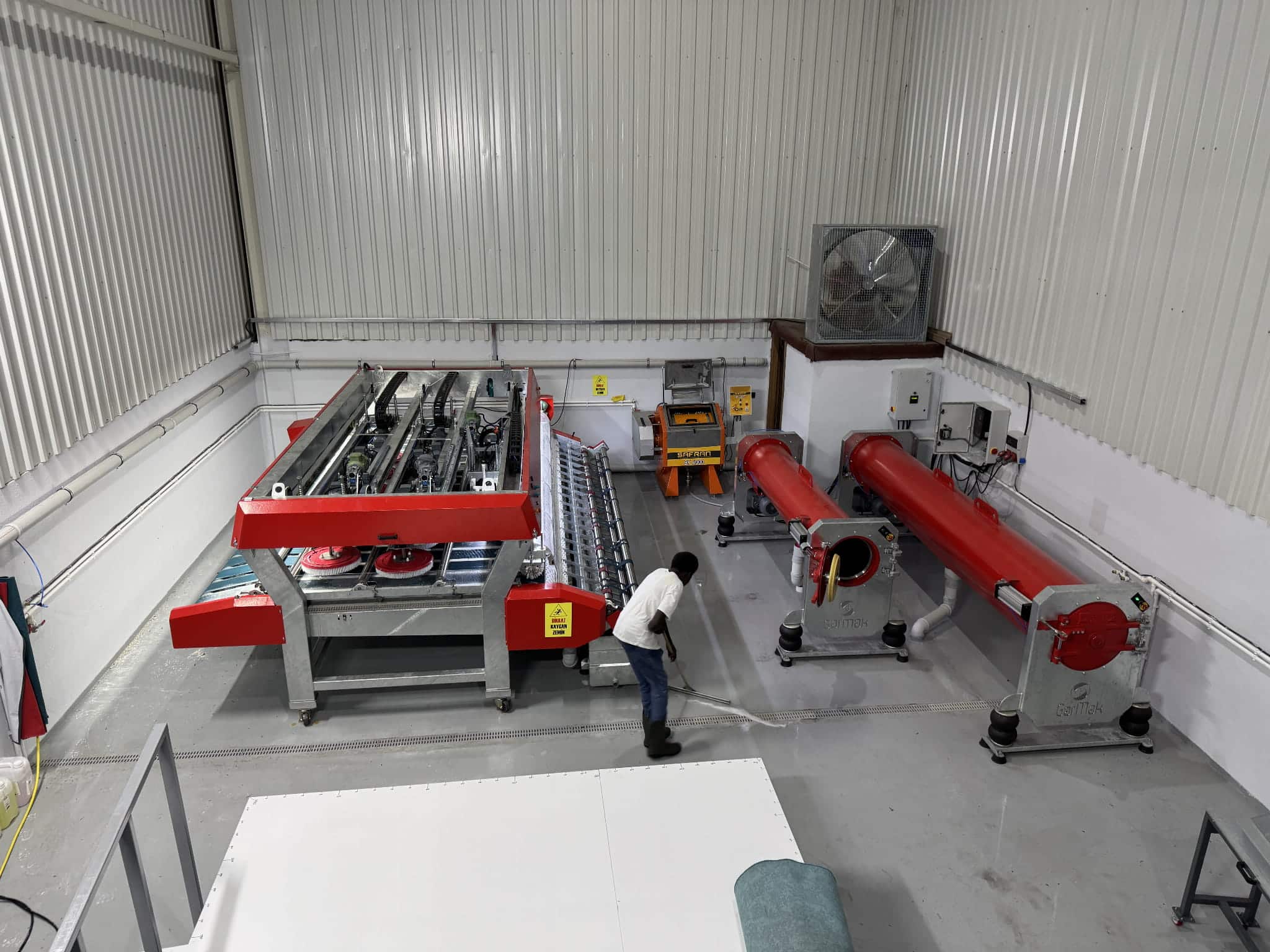

4) Business Setup and Plant Solutions

The Giga series is fully compatible with Gar-Mak’s professional plant ecosystem:

  • Beater: Carpet beating & dust removal machine
  • Comfy: Carpet spin-dryer machine
  • Finito: Carpet packaging machine

In this way, it offers a fully integrated solution for businesses that want to establish a
complete carpet washing plant.

Technical Specifications

GIGA PRO FULLY AUTOMATIC CARPET WASHING MACHINE

FeatureX3025F8RVBX3032F8RVBX3032F10RVBX3042F8RVBX3042F10RVB
SeriesProProProProPro
Belt Width (cm)250320320420420
Brush Configuration2 Bridges (4+4 = 8 Discs)2 Bridges (4+4 = 8 Discs)2 Bridges (5+5 = 10 Discs)2 Bridges (4+4 = 8 Discs)2 Bridges (5+5 = 10 Discs)
Moving Roller / VacuumVacuumVacuumVacuumVacuumVacuum
Washing Capacity (m² / 8 hours)1000 m² / 8 hours1350 m² / 8 hours1480 m² / 8 hours1450 m² / 8 hours1650 m² / 8 hours
Energy Consumption (kW)9.9 kW/hour9.9 kW/hour11 kW/hour9.9 kW/hour11 kW/hour
Total Power (kW)18 kW/hour18 kW/hour21 kW/hour18 kW/hour21 kW/hour
Water Consumption (L/min)53 L/min53 L/min63 L/min53 L/min63 L/min
Dimensions (cm) W×L×H320×370×195390×370×195390×370×195490×370×195490×370×195
Weight (kg)1950 kg2165 kg2215 kg2490 kg2535 kg

GIGA OPTIMA FULLY AUTOMATIC CARPET WASHING MACHINE

FeatureX3025F12RVBX3032F12RVBX3032F15RVBX3042F12RVBX3042F15RVB
SeriesOptimaOptimaOptimaOptimaOptima
Belt Width (cm)250320320420420
Brush Configuration3 Bridges (4+4+4 = 12 Discs)3 Bridges (4+4+4 = 12 Discs)3 Bridges (5+5+5 = 15 Discs)3 Bridges (4+4+4 = 12 Discs)3 Bridges (5+5+5 = 15 Discs)
Moving Roller / VacuumVacuumVacuumVacuumVacuumVacuum
Washing Capacity (m² / 8 hours)1000 m² / 8 hours1350 m² / 8 hours1480 m² / 8 hours1450 m² / 8 hours1650 m² / 8 hours
Energy Consumption (kW)13 kW/hour13 kW/hour15 kW/hour13 kW/hour15 kW/hour
Total Power (kW)24 kW/hour24 kW/hour28 kW/hour24 kW/hour28 kW/hour
Water Consumption (L/min)63 L/min63 L/min71 L/min63 L/min71 L/min
Dimensions (cm) W×L×H320×425×195390×425×195390×425×195490×425×195490×425×195
Weight (kg)2270 kg2550 kg2620 kg2945 kg3016 kg

GIGA HYBRID FULLY AUTOMATIC CARPET WASHING MACHINE

FeatureX3025F8RGBX3032F8RGBX3032F10RGBX3042F8RGBX3042F10RGB
SeriesHybridHybridHybridHybridHybrid
Belt Width (cm)250320320420420
Brush Configuration3 Bridges (4+4+4 = 12 Discs)3 Bridges (4+4+4 = 12 Discs)3 Bridges (5+5+5 = 15 Discs)3 Bridges (4+4+4 = 12 Discs)3 Bridges (5+5+5 = 15 Discs)
Moving Roller / VacuumMoving RollerMoving RollerMoving RollerMoving RollerMoving Roller
Washing Capacity (m² / 8 hours)1000 m² / 8 hours1350 m² / 8 hours1480 m² / 8 hours1450 m² / 8 hours1650 m² / 8 hours
Energy Consumption (kW)14 kW/hour14 kW/hour16 kW/hour14 kW/hour16 kW/hour
Total Power (kW)25 kW/hour25 kW/hour29 kW/hour25 kW/hour29 kW/hour
Water Consumption (L/min)67 L/min67 L/min75 L/min67 L/min75 L/min
Dimensions (cm) W×L×H320×425×195390×425×195390×425×195490×425×195490×425×195
Weight (kg)2225 kg2505 kg2575 kg2900 kg2970 kg

GIGA SERIES OPTIONS

OptionX3025F8XXXX3032F8XXXX3032F10XXXX3042F8XXXX3042F10XXX
Automatic Dosing System✓✓✓✓✓
High-Pressure Pre-Wash✓✓✓✓✓
Extra Brush Set✓✓✓✓✓
Advanced Filtration System✓✓✓✓✓

Note: All models operate with 380V / 50Hz three-phase electricity and require 6–8 Bar compressed air. 60Hz-compatible models can be manufactured upon request.

Why Is This Machine Necessary?

1) The fastest and most consistent results in the industry

Thanks to fully automatic PLC control, every carpet is washed with the same quality; results do not change even if the operator changes. This is a critical advantage for operational continuity and customer satisfaction.

2) Lower costs, higher profitability

With its sensor system that optimizes water, detergent and energy consumption, it provides
up to 30% savings. With a capacity of 1000–1650 m² per 8-hour shift, it reduces the unit cost of your operation.

3) Superior cleaning – guaranteed results on every carpet type

The 8–18 brush configuration, combined with upper–lower roller brushes and vacuum, delivers deep hygiene even on long-pile, shaggy, wool, woven and heavily soiled carpets.

4) Fast return on investment

Giga series machines are among the models that retain the highest resale value across Türkiye and Europe.

5) Modular design – the machine grows as your business grows

With different belt widths, brush counts, hybrid/vacuum options and additional modules, the right configuration is selected according to your plant capacity.

6) Local manufacturing – instant access to technical support

Gar-Mak’s 22 years of manufacturing experience, spare parts guarantee and field-proven engineering approach ensure a long-lasting investment.

7) The ideal starter machine for new plants

For all users searching for
"I want to open a carpet cleaning shop", the Giga series is the most suitable solution with its high capacity, low manpower requirement and consistent quality.

Videos

Related products

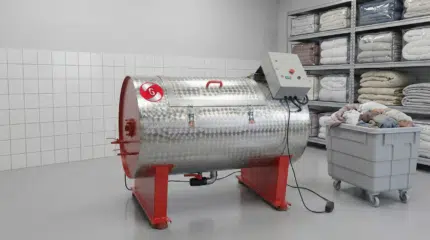

Blanket and Quilt Washing Machine

These blanket and quilt washing machines deliver high efficiency and user-friendly features, making them an ideal solution for small businesses and personal use. Driven by a 3 HP motor with inverter control and adjustable spin speed, they provide energy‑efficient cleaning for different fabric types.

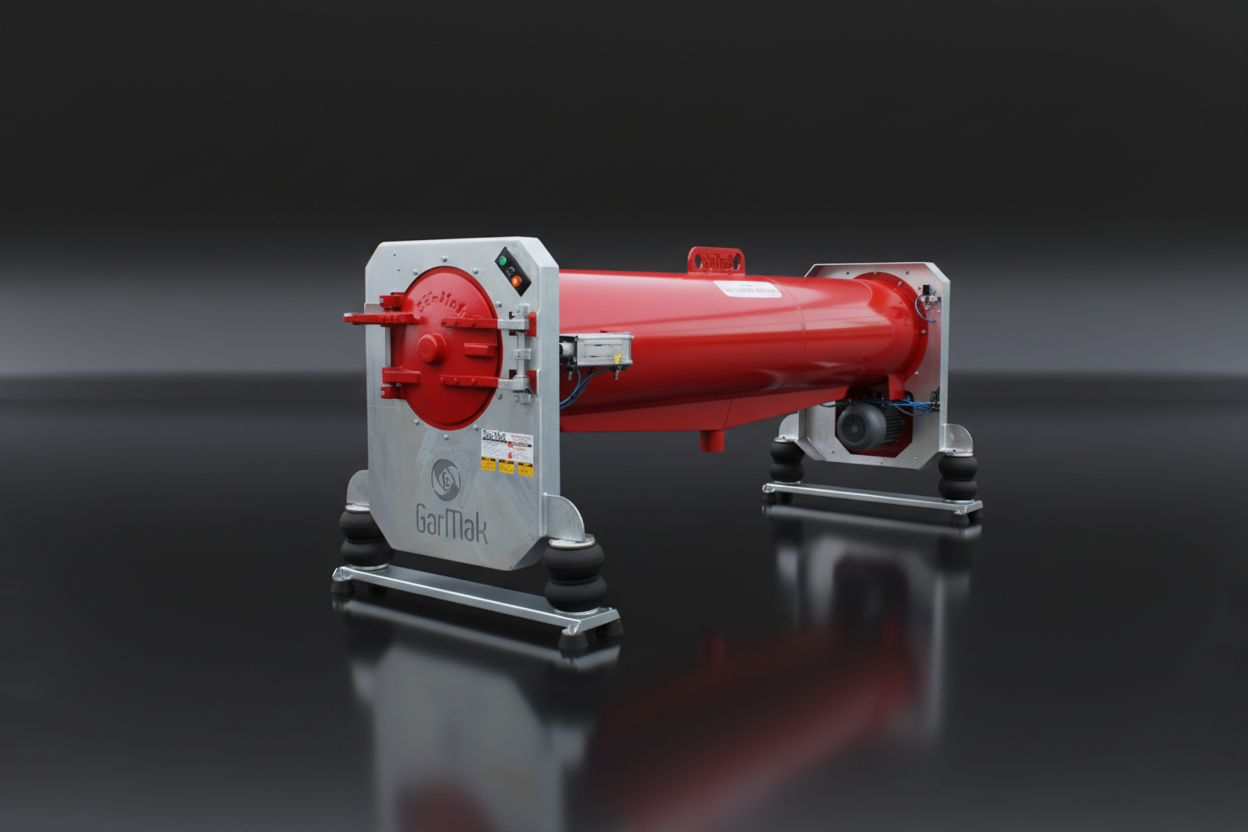

Comfy Carpet Spinning and Centrifuge Machine

Achieve faster, safer and more energy‑efficient drying cycles for your carpets. This Comfy Carpet Spinning and Centrifuge Machine operates at a high 1300 RPM spin speed for rapid water extraction, while the silent bellows suspension ensures smooth, vibration‑free performance. A pneumatic lid with easy locking provides secure operation, complemented by a rugged cast‑iron lid for years of trouble‑free service. An integrated automatic brake with timer control and soft‑start technology reduces energy use and enhances safety.

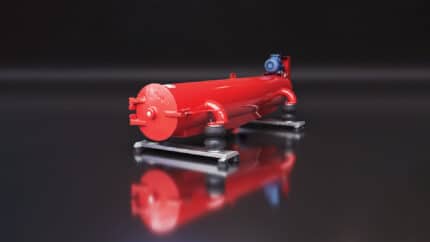

Croc Halı Sıkma ve Santrifüj Makinesi

Halılarınızı daha kısa sürede, daha az enerjiyle ve daha güvenli bir şekilde kurutun! ✅ 1300 RPM yüksek sıkma hızı ✅ Sessiz ve titreşimsiz körük süspansiyon sistemi ✅ Pnömatik kapak & kolay kilitleme güvenliği ✅ Döküm kapak – uzun yıllar sorunsuz kullanım ✅ Otomatik fren sistemi ve zaman ayarlı pano ✅ Soft start kalkış desteği – enerji tasarrufu sağlar ✅ Paslanmaz çelik iç tambur – hijyenik ve dayanıklı ✅ Opsiyonel sürücülü pano sistemi ve farklı ölçü seçenekleri 🔹 Bu makineyle halılarınız sadece hızlı değil, kusursuz şekilde kurur!

Dehumidifier and Carpet Drying Machine

Designed for professional cleaning operations, the D7000 dehumidifier and carpet drying machine accelerates moisture removal so freshly washed carpets and rugs are dry and ready in no time. By preventing mould and protecting fibre integrity, it enhances hygiene and efficiency, saving both time and operating costs for businesses and ensuring outstanding results for customers.

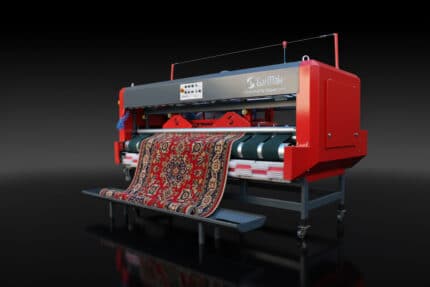

Finito Carpet Fluffing, Sweeping and Packaging Machine

Give your carpets a professional finishing touch after washing! ✅ Deep cleaning – removes hair, lint, fluff, and dust ✅ Powerful yet gentle sweeping with 4 specially designed brushes ✅ Around 1000 RPM – maximum cleaning without damaging the carpet ✅ Dual-direction brush system – for fluffy and vibrant results ✅ Automatic perfuming – leaves a fresh and pleasant scent ✅ Hands-free tight rolling – saves time and ensures easy operation ✅ Front and rear daylight lighting – superior stain visibility ✅ Processes up to 300 m² of carpets per hour ✅ Roller brush system for backside cleaning ✅ Adjustable belt and pressure system – precise use for every carpet 🔹 With this machine, your carpets don’t just get cleaned — they come back to life!

Fora Sofa Washing Machine

Engineered for comprehensive hygiene in homes, offices, hospitality venues and large public spaces, Garmak’s dual-motor Fora sofa and carpet washer delivers high-performance deep cleaning without lifting carpets. Perfect for sofa, carpet and mattress washing, it ensures superior cleanliness and efficiency across a variety of applications.

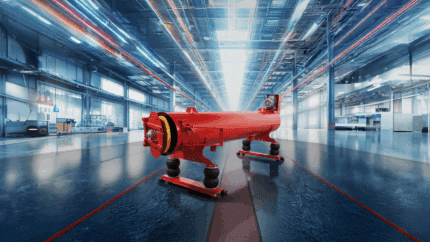

Nivo Carpet Spinning and Centrifuge Machine

🔹 Dry your carpets faster, with less energy, and maximum safety!
 ✅ 1300 RPM high-speed spin
 ✅ Silent and vibration-free bellows suspension system
 ✅ Pneumatic lid with easy-lock safety mechanism
 ✅ Spheroidal graphite cast-iron lid – designed for years of trouble-free operation
 ✅ Automatic braking system with timer-controlled panel
 ✅ Soft-start support – ensures smooth operation and energy savings
 ✅ Stainless steel inner drum – hygienic and durable
 ✅ Optional inverter control panel and various size configurations
 ✅ With this machine, your carpets don’t just dry fast — they dry perfectly!

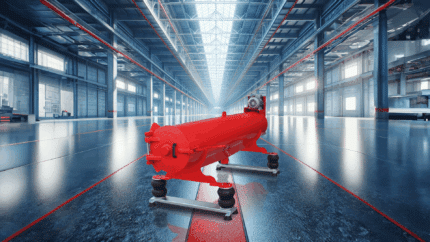

Sage Carpet Spin Dryer Centrifuge Machine
